| TECHNICAL SPECIFICATIONS |
|
| MyChron6 |
|
|
 |
|
| MyChron6 2T |
 |
|
 |
|
|
|
|
|
MyChron6 |
MyChron6 2T |
| Display |
Integrated |
| Display resolution |
320x136 pixels |
| Backlight |
8 configurable RGB colors |
| Shift lights/alarm LEDs |
5 + 2 configurable RGB LEDs |
| Integrated track database |
Yes |
| Wi-Fi connection |
Yes |
| Bluetooth connection |
Yes |
| GPS |
25 Hz |
| External power |
9÷15 V |
| CAN connections |
2 |
| Connectors |
1 Binder 712 fem 3 pins connector
1 Binder 712 fem 8 pins connector
1 Binder 712 fem 5 pins connector |
1 Binder 712 fem 7 pins connector
1 Binder 712 fem 8 pins connector
1 Binder 712 fem 5 pins connector |
| USB connection |
For data download, mass storage support and battery charge |
| Temperature inputs |
1 |
2 |
| Inertial platform |
6 axis, frequency 50 Hz |
| Digital inputs |
Optical lap signal + magnetic lap signal |
| Digital outputs |
1, programmable high/low activation |
| External modules |
MyChron Expansion, IR Temperature Controller, SmartyCam 3 Series, Lambda (LCU-One and LCU1S) |
| Memory |
4 GB |
| Internal battery type |
Rechargeable Lithium |
| Battery life |
20 h approx. |
| Body |
PA6 GS30% |
| Dimensions |
150.0 x 79.0 x 36.6 mm |
| Weight |
370 g |
| Waterproof |
IP67 |
|
|
| RELATED PRODUCTS |
| |
 |
|
| MYCHRON EXPANSION |
|
| The channel multiplier improving MyChron5S/2T performances, thanks to four additional channels and a further connector for the CAN bus. |
|
|
|
|
|
|
 |
|
| MYCHRON STEERING WHEEL |
|
| MyChron Steering Wheel is the ideal complement for MyChron5S/2T and MyChron6/2T. Light-weighted and ergonomical, it allows you to put your MyChron in the best position: right in front of you. |
|
|
|
|
|
|
 |
|
| SMARTYCAM 3 SERIES |
|
| The new range of motorsport cameras by AiM designed for a wide range of activities. |
|
|
|
|
|
|
 |
|
| LCU1S |
|
| LCU1S monitors air/fuel ratio, making your engine run at its best! |
|
|
|
|
|
|
 |
|
| DATA HUB |
|
| The CAN connection multiplier working as an interface between AiM logger and its peripheral equipments. |
|
|
|
|
|
|
|
|
 |
|

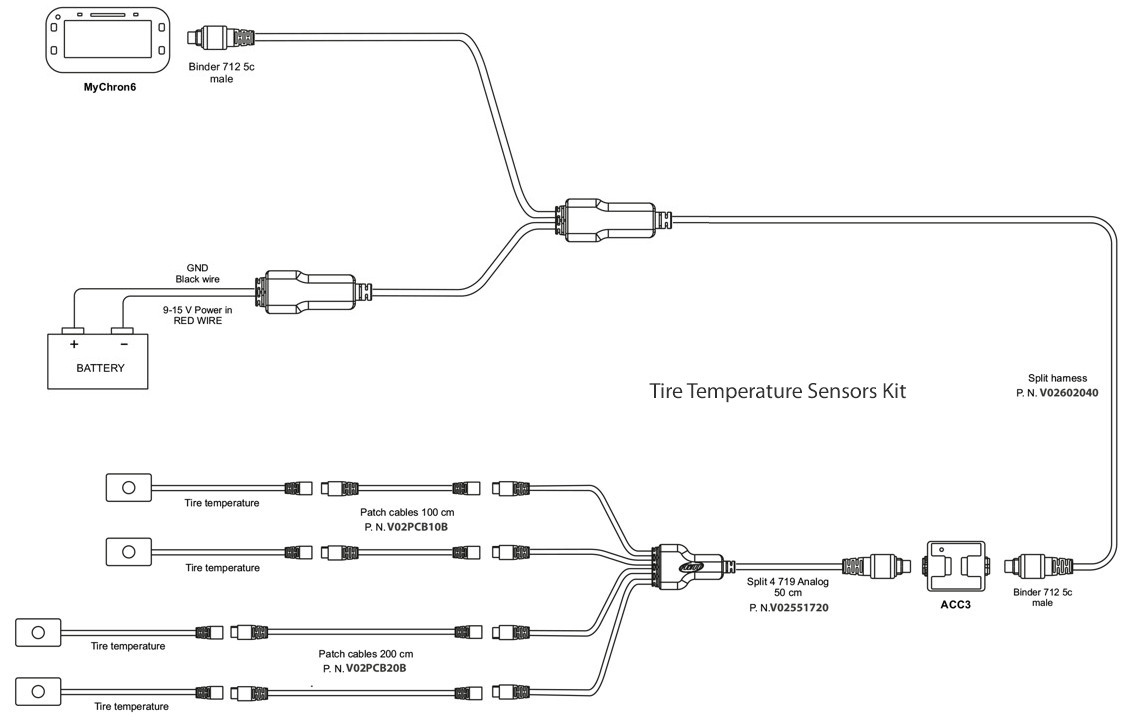

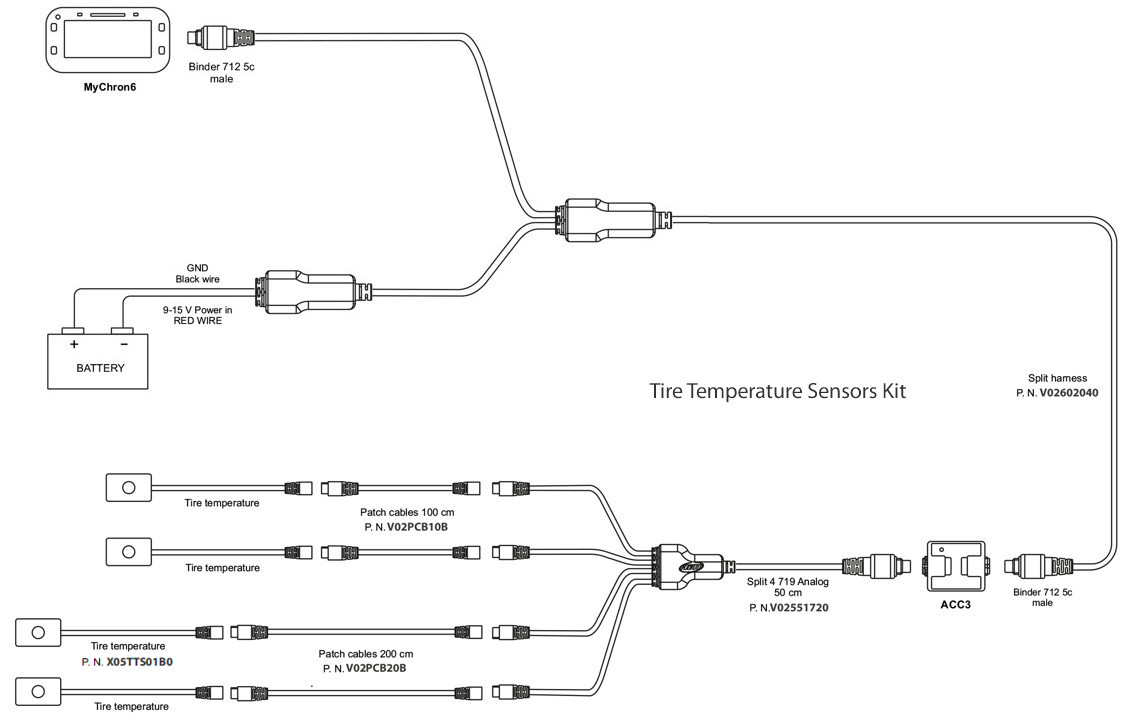

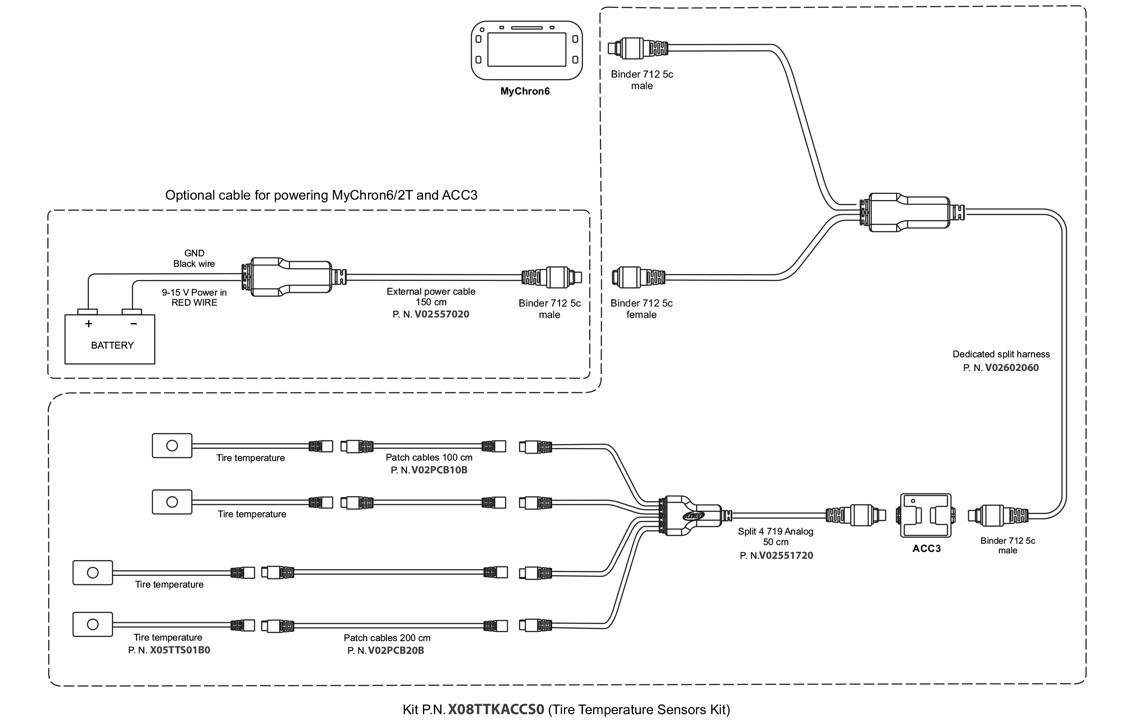

| TIRE TEMPERATURE SENSORS KIT |
|
