Thirty years of MyChron MY30 Anniversary
MY30 Anniversary picture
Always one step ahead
From the early days of karting to the present, MyChron has been a faithful companion for drivers and teams seeking ever-higher performance.
Today MyChron6 - with the integration of increasingly advanced technologies, such as high-precision GPS, Bluetooth connectivity, the second CAN for additional sensors and the long-lasting battery - represents more than ever the indispensable tool for every kart driver and confirms its market leading position.
MyChron6 is available in two versions:
   Display
Graphical
   Display resolution
320x136 pixels
   Backlight
8 configurable RGB colors
   Shift lights/alarm LEDs
5 + 2 configurable RGB LEDs
   Integrated track db
Yes
   Wi-Fi connection
Yes
    Bluetooth connection
Yes
   GPS
25 Hz
   External power
9÷15 V
   CAN connections
2
   Connectors
1 Binder 712 fem 3 pins connector
1 Binder 712 fem 8 pins connector
1 Binder 712 fem 5 pins connector
1 Binder 712 fem 7 pins connector
1 Binder 712 fem 8 pins connector
1 Binder 712 fem 5 pins connector
   USB connection
For data download, mass storage support and battery charge
   Temperature inputs
1
2
   Inertial platform
6 axis, frequency 50 Hz
   Digital inputs
Optical lap signal, Magnetic lap signal
   Digital outputs
1, programmable high/low activation
   External modules

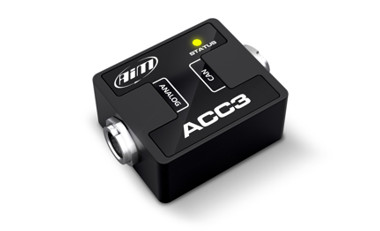

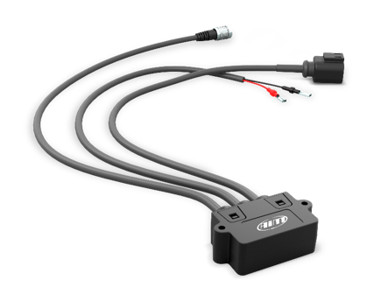

MyChron Expansion, IR Temperature Controller, SmartyCam 3 Series, LCU1S
   Memory
4 GB
   Internal battery type
Rechargeable Lithium
   Battery life
20 h approx.
   Body
PA6 GS30%
   Dimensions
152.0 x 81.0 x 37 mm
   Weight
370 g
   Waterproof
IP67
