EVO6 | EVO6L |
|
The new generation of data loggers |
|
|
|
EVO6 and EVO6L, now at the sixth generation, represent the evolution of the AiM renowned data loggers that, all over the years, have become a standard de facto acquisition system in several championships. |
|
|
|
|
EVO6 uses a new processor that guarantees even better performance than previous models and is more geared towards professional drivers, who can independently wire their vehicle with Autosport connectors. Applications include motorcycles, Formula cars, prototypes and vehicles with limited space.
EVO6L can be considered a "light" version of its bigger brother, while still maintaining high-level performance in all applications.
With their compact aluminum body, EVO6 and EVO6L can be easily placed in any vehicle and their configuration with the RaceStudio 3 software is simple and immediate. |
|
|
| |
|
| ECU connection |
|
CAN, RS232 or K-Line to 2,000+ industry leading ECUs |
| External modules |
|
GPS Modules, LCU Series, SmartyCam Series |
| Analog inputs |
|
8 fully configurable: 0-5V, 0-12V, K thermocouples,
max freq. 1,000 Hz each |
|
5 fully configurable, max 1,000 Hz each |
| Digital inputs |
|
Coil RPM and 4 speed inputs |
|
2 Speed inputs, lap signal, coil RPM input |
| Inertial platform |
|
Internal 3 axis ±5G accelerometer + 3 axis gyro |
| Digital outputs |
|
2, up to 1 Amp each |
|
1 (1 Amp max) |
| Second CAN |
|
Yes |
|
-- |
| Wi-Fi connection |
|
Yes |
|
-- |
| Bluetooth |
|
Yes |
|
-- |
| Internal memory |
|
4 GB |
| SD Card |
|
Yes, up to 128 GB |
|
-- |
| Connectors |
|
2 Motorsport connectors |
|
13 Binder 712 female connectors |
| Body |
|
Anodized Aluminum |
| LEDs |
|
1 system status |
| Dimensions |
|
114.4 x 47.2 x 26.0 mm |
|
130.0 x 46.6 x 26.0 mm |
| Weight |
|
230 g |
| Waterproof |
|
IP65 |
|
|
|
|
|
|
| A wide range of sources for your data |
|
EVO6 and EVO6L sample all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS09c included in all the available kits. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 8 configurable analog channels for EVO6 and 5 configurable analog channels for EVO6L, to the RPM input and to 4 wheel speed inputs for EVO6 and 2 wheel speed inputs for EVO6L. |
|
|
|
|
|
|
|
|
One or two digital outputs |
|
EVO6 has two digital outputs while EVO6L has only one.
The digital outputs (Dout) are LOW SIDE
type (switch to ground): they can be configured
in order to be turned on/off depending on
the value of the analog or digital inputs.
They permit to automatically run external systems,
i.e. to switch on/off additional lights, to activate/
de-activate a cooling fan or circulation pumps,
etc. when a certain event happens. |
|
|
|
CAN output |
|
With the CAN Output you can send messages
directly to an existing CAN network in order
to improve the range of vehicle control possibilities. |
|
|
|
|
|
| Need more storage? |
|
EVO6 allows to record all possible data you may ever need, thanks to an SD card (not included).
The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent
any data loss possibility. No way to have a faster data downloading: you remove the SD and... it's done! |
|
| Multiple connections |
|
EVO6 can be easily connected to your device
in three different ways:
|
 |
Wi-Fi (802.11 connection) |
|
|
Bluetooth |
|
|
USB cable |
|
|
|
|
|
|
|
|
Sensors |
|
Many sensors can be connected to EVO6 and EVO6L via:
|
|
|
|
|
|
|
| 8 analog channels with configurable inputs or thermocouple input, max freq. 1,000 Hz each, used to sample data coming from temperature, pressure, suspension and other kinds of sensors. |
|
| 4 speed inputs, which allow to monitor the different wheels behavior. |
|
| 1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage). |
|
|
|
|
|
|
|
| 5 analog channels with configurable inputs or thermocouple input, max freq. 1,000 Hz each, used to sample data coming from temperature, pressure, suspension and other kinds of sensors. |
|
| 2 speed inputs, which allow to monitor the different wheels behavior. |
|
| 1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage). |
|
|
|
|
|
|
|
|
Internal three-axial accelerometer and gyro sensor |
|
The built-in inertial platform of EVO6 and EVO6L lets you have the most powerful system for understanding oversteering,
understeering, banking, etc.
|
|
|
|
|
|
Two multi-channel Motorsport
connectors for EVO6 |
|
EVO6 features two multi-channel Motorsport connectors: simple and straightforward, one top quality harness for all your connections.
A 37 pins connector for main applications (power, CAN, AiM CAN network, etc.) and a 22 pins connector for additional functions like CAN2, digital outputs and so on. |
|
|
|
|
|

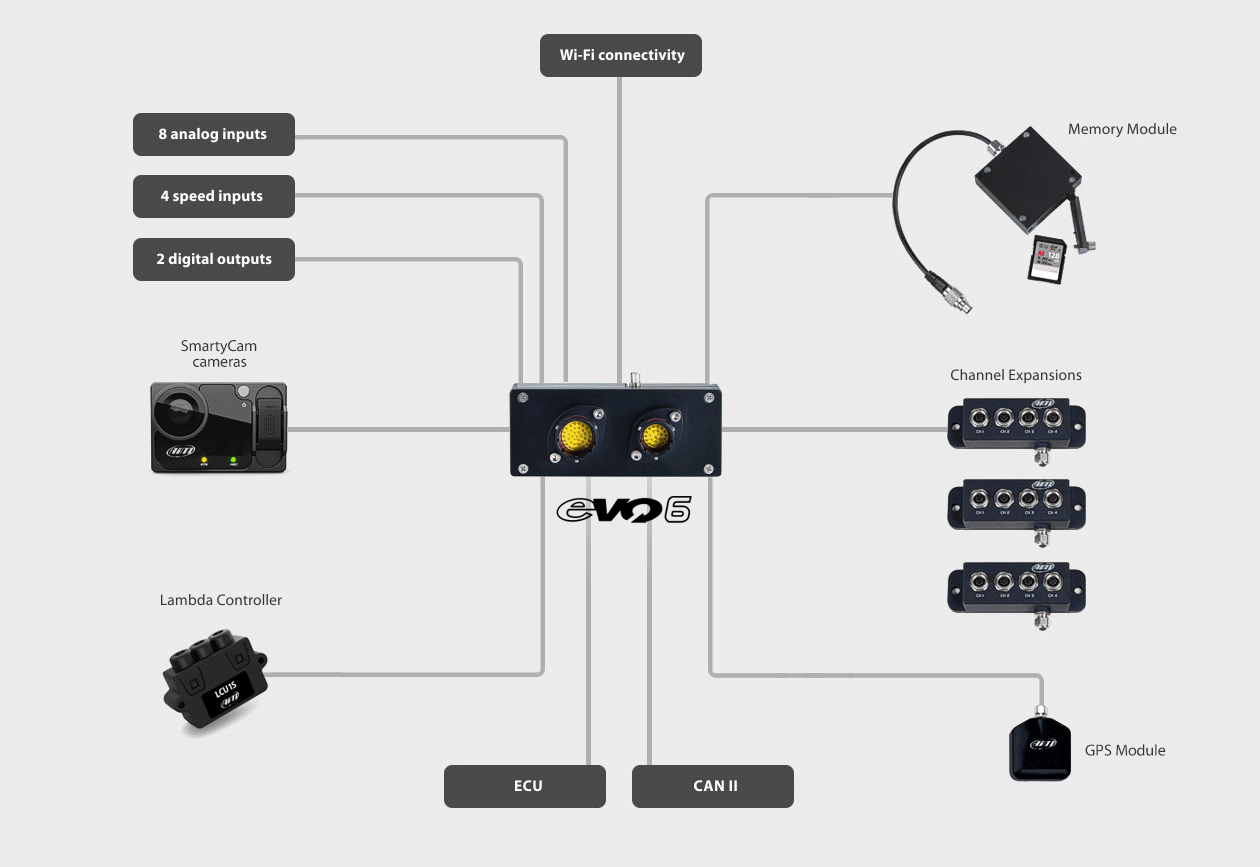

| Expand EVO6 and EVO6L as much as you need |
|
| Add expansion modules via our built-in CAN bus: |
|
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed. |
|
 |
|
|
LCU Lambda Controllers
Wide band Lambda controllers with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion. |
|
 |
|
|
SmartyCam cameras
The on-board cameras that overlays on videos the data sampled by your logger. |
|
 |
|
|
Memory Module
The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests. |
|
 |
|
|
| ... and all sensors you may need to improve the EVO6 and EVO6L performance. |
|
|
|
|
|
|
Compatible display |
|
To visualize in real time all the data,
EVO6 and EVO6L can be connected
to the visor GS-Dash. |
|
|
|
|
| Download your data to a PC for a professional data analysis |
|
| Data recorded by EVO6 and EVO6L can be downloaded to PC and analyzed with the free professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique. |
|
| |
|
|
 |
|
|
|
|
|
|
