| TECHNICAL SPECIFICATIONS |
|
 |
|
 |
|
| ECU connection |
CAN, RS232 or K-Line to 2,000+ industry leading ECUs |
| External modules |
GPS09c, LCU Series, SmartyCam Series |
| Analog inputs |
8 fully configurable: 0-5V, 0-12V, K thermocouples, max freq. 1,000 Hz each |
| Digital inputs |
Coil RPM and 4 speed inputs |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro |
| Digital outputs |
2, up to 1 Amp each |
| Second CAN |
Yes |
| Wi-Fi connection |
Yes |
| Bluetooth |
Yes |
| Internal memory |
4 GB |
| SD card |
Internal: up to 128 GB |

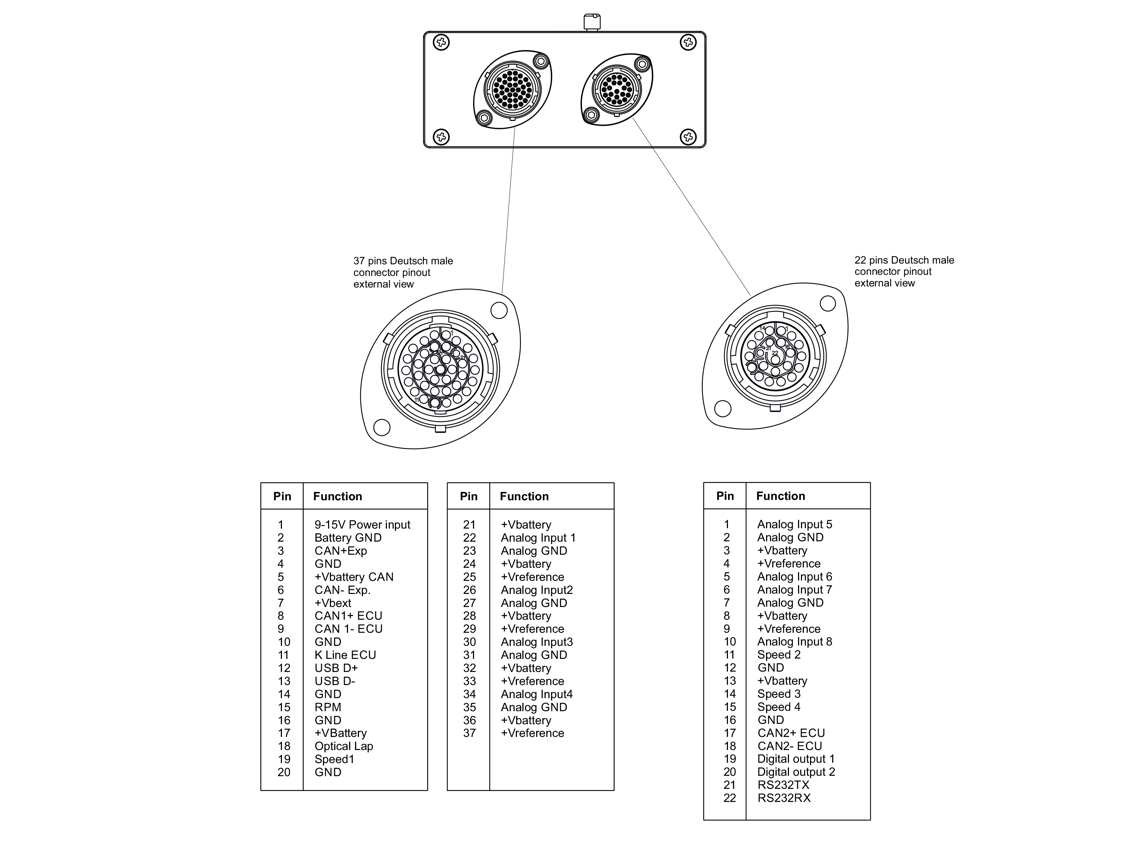

| Connectors |
2 Motorsport connectors |
| Body |
Anodized Aluminum |
| LEDs |
1 system status |

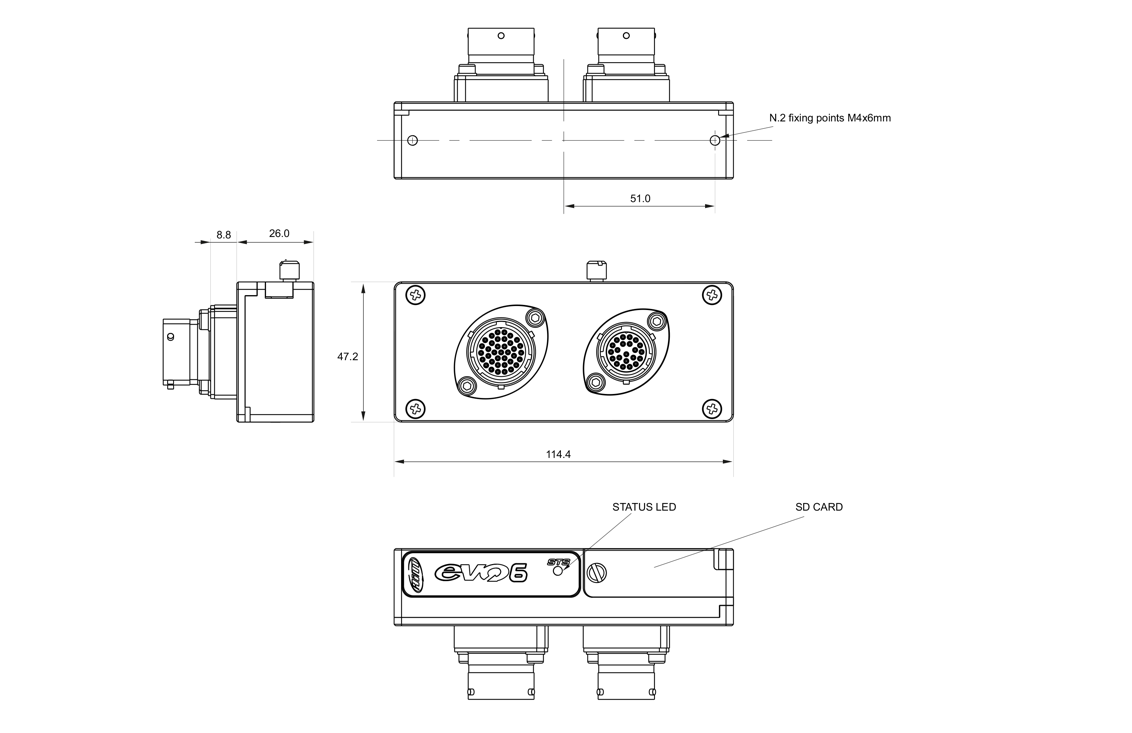

| Dimensions |
114.4 x 47.2 x 26.0 mm |
| Weight |
230 g |
| Waterproof |
IP65 |
|
|
 |
|
|
|
