GS-Dash |
|
The display for EVO4S and EVO5 |
|
|
|
GS-Dash has been designed to show data sampled by the new generation of AiM loggers, EVO4S and EVO5: all data coming from your vehicle ECU, from the GPS, from your sensors, as well as from the inertial platform. GS-Dash is NOT compatible with EVO4. |
|
|
|
|
|
|
|
|
Easy and immediate readability |
|
In its compact structure, GS-Dash features a wide 268x128 pixel display to maximise readability.

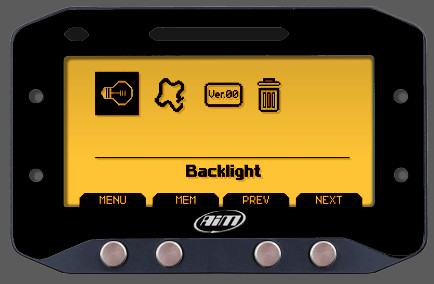

The screen can be backlighted in one of the seven available colors.
The incorporated light sensor makes brightness and contrast ideal in all light conditions. |
|
|
|
|
|
|
|
Up to 9 pages showing the data you wish, as you wish |
|
GS-Dash swaps among pages showing lap times and data in a 100% customizable way: just choose your data and create your pages displaying up to 8 fields each.
The "RPM and Lap Time" page layout is also available to display RPM Graph, Lap Time and three channels of your choice. |
|
|
|
|
|
|
|
|
Lap times |
|
You can visualize the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).
|
|
|
|
|
|
|
|
Fully configurable shift lights and alarm LEDs |
|
GS-Dash features five individually configurable RGB LED shift lights: you will choose color and value thresholds for their activation.
In addition, they can also be configured to show your best lap/split time or monitor RPM level. |
|
Alarms LEDs are configurable as well and can be managed in a very flexible way: you can choose the situation that generates the alarm, the LED behavior (blinking frequency and color) when the alarm appears and the conditions for its switch-off. |
|
|
|
|
|
|
|
Easy configuration |
|
Shift Lights and alarms are to be configured using RaceStudio 3 configuration panel. |
|
|
|
|
|
|
|
|
Recall your session highlights |
|
A key-data summary is available at the end of each session: the three best laps of the session with their times, min/max speed and min/max RPMs.
In the following pages you can also see a list of all the laps of the session. |
|
|
|
|
|
|
|
|
| Compact and resistant chassis |
|
Its small dimension makes it particularly
suitable for small cockpit installation
(i.e. bikes, formula cars).
Totally in aluminum, with edge-to-edge
glass and metallic pushbuttons, GS-Dash
is robust and fully waterproof. |
|
|
|
|
