ACC3
ACC3 Open
Manuale utente ACC2
Manuale utente ACC2 Open
Scheda informativa di sintesi ACC3 (ENG)
Scheda informativa di sintesi ACC3 Open (ENG)
Webinar ACC Roger Caddell (31 Ott 2023)
Materiale fotografico ACC3
Materiale fotografico ACC3 Open
SPECIFICHE TECNICHE
ACC3
ACC3 - Pinout
ACC3 connessioni - Parte 1
ACC3 connessioni - Parte 2
ACC3 connessioni - Parte 3
ACC3 caratteristiche tecniche
 Canali analogici
4 canali completamente configurabili, 1 kHz ognuno: TC, TR, 0÷5 V, 0÷12 V
 Ingressi velocità
2 (AN3-AN4), frequenza max 10 kHz,
pull-up interno per ingresso open drain/collector
 Alimentazione
9÷15 V
 Connessione
CAN
 Connettori
2 connettori Binder 712 femmina
 Materiale
PA6 30% glass
 Dimensioni
44.0 x 38.0 x 19.8 mm
 Peso
50 g
 Waterproof
IP65
ACC3 - KIT DISPONIBILI, ACCESSORI & PARTI D RICAMBIO

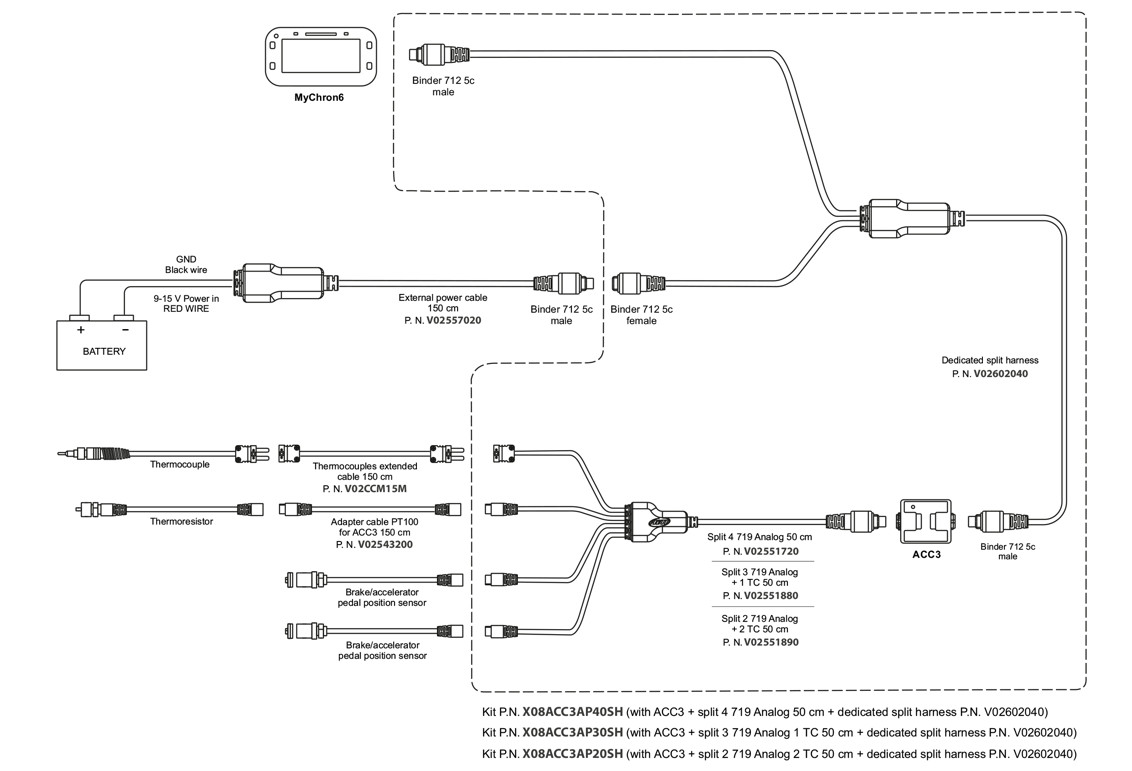

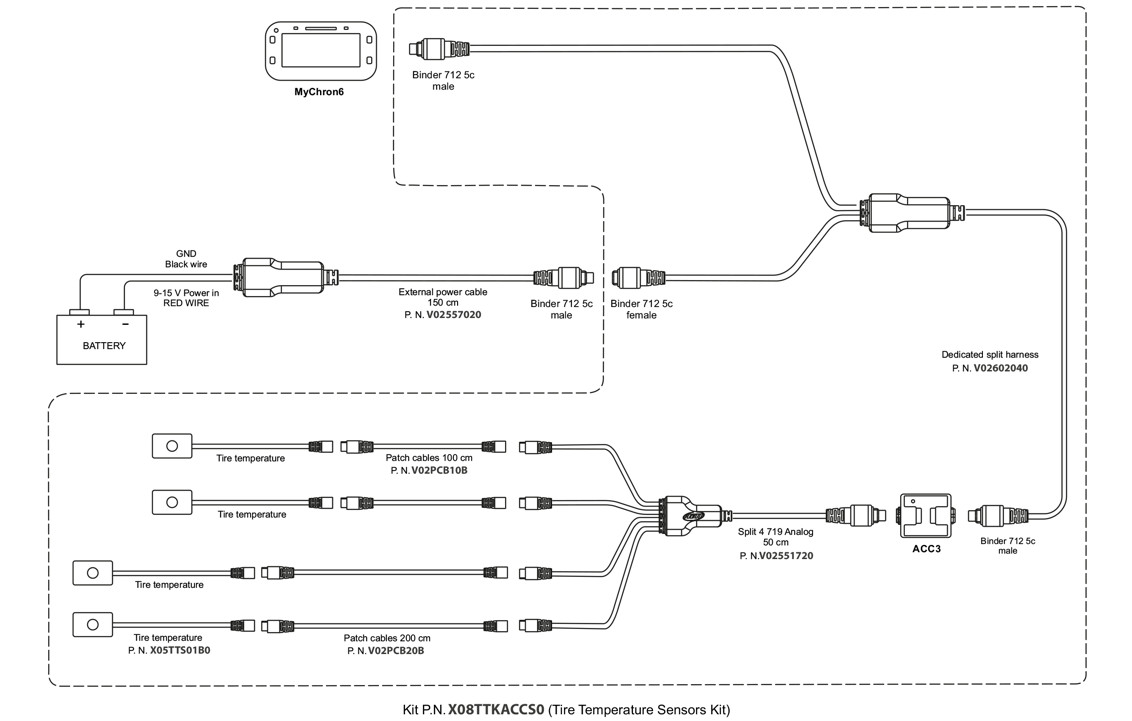

ACC3 + Split 4 719 Analog 50 cm + CAN cable 50 cm X08ACC3AP4050
ACC3 + Split 4 719 Analog 50 cm + CAN cable 100 cm X08ACC3AP4100
ACC3 + Split 4 719 Analog 50 cm + CAN cable 200 cm X08ACC3AP4200
ACC3 + Split 4 719 Analog 50 cm + CAN cable 400 cm X08ACC3AP4400
ACC3 + Split 3 719 Analog 1 TC 50 cm + CAN cable 50 cm X08ACC3AP3050
ACC3 + Split 3 719 Analog 1 TC 50 cm + CAN cable 100 cm X08ACC3AP3100
ACC3 + Split 3 719 Analog 1 TC 50 cm + CAN cable 200 cm X08ACC3AP3200
ACC3 + Split 3 719 Analog 1 TC 50 cm + CAN cable 400 cm X08ACC3AP3400
ACC3 + Split 2 719 Analog 2 TC 50 cm + CAN cable 50 cm X08ACC3AP2050
ACC3 + Split 2 719 Analog 2 TC 50 cm + CAN cable 100 cm X08ACC3AP2100
ACC3 + Split 2 719 Analog 2 TC 50 cm + CAN cable 200 cm X08ACC3AP2200
ACC3 + Split 2 719 Analog 2 TC 50 cm + CAN cable 400 cm X08ACC3AP2400
ACC3 + Split 1 719 Analog 3 TC 50 cm + CAN cable 50 cm X08ACC3AP1050
ACC3 + Split 1 719 Analog 3 TC 50 cm + CAN cable 100 cm X08ACC3AP1100
ACC3 + Split 1 719 Analog 3 TC 50 cm + CAN cable 200 cm X08ACC3AP1200
ACC3 + Split 1 719 Analog 3 TC 50 cm + CAN cable 400 cm X08ACC3AP1400
ACC3 + Split 4 TC 50 cm + CAN cable 50 cm X08ACC3AP0050
ACC3 + Split 4 TC 50 cm + CAN cable 100 cm X08ACC3AP0100
ACC3 + Split 4 TC 50 cm + CAN cable 200 cm X08ACC3AP0200
ACC3 + Split 4 TC 50 cm + CAN cable 400 cm X08ACC3AP0400
Split 4 719 Analog 3 cables 50 cm + 1 cable 100 cm V02551920
Split 4 719 Analog 50 cm V02551720
Split 3 719 Analog + 1 TC 50 cm V02551880
Split 2 719 Analog + 2 TC 50 cm V02551890
Split 1 719 Analog + 3 TC 50 cm V02551900
Split 4 TC 50 cm V02551910
Split 4 Analog FW cables 50 cm V02551930
Split 3 Analog FW + 1 TC cables 50 cm V02551980
Split 2 Analog FW + 2 TC cables 50 cm V02551990
Split 1 Analog FW + 3 TC cables 50 cm V02543010
CAN cable AiM - 5MM712 50 cm V02554790
CAN cable AiM - 5MM712 100 cm V02554810
CAN cable AiM - 5MM712 200 cm V02554820
CAN cable AiM - 5MM712 400 cm V02554830
ACC3 Open
ACC3 Open - Pinout
ACC3 Open connessioni - Analog side 1
ACC3 Open connessioni - Analog side 2
ACC3 Open connessioni - Analog side 3
ACC3 Open connessioni - CAN-USB side
ACC3 Open caratteristiche tecniche
 Canali analogici
4 canali completamente configurabili, 1 kHz ognuno: TC, TR, 0÷5 V, 0÷12 V
 Ingressi velocità
2 (AN3-AN4), frequenza max 10 kHz,
pull-up interno per ingresso open drain/collector
 Alimentazione
9÷15 V
 Connessione
CAN, USB
 Connettori
2 connettori Binder 712 femmina
 Materiale
PA6 30% glass
 Dimensioni
44.0 x 38.0 x 19.8 mm
 Peso
50 g
 Waterproof
IP65
ACC3 Open - KIT DISPONIBILI, ACCESSORI & PARTI D RICAMBIO
ACC3 Open + Split 4 719 Analog 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP4200
ACC3 Open + Split 4 719 Analog 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP4400
ACC3 Open + Split 3 719 Analog 1 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP3200
ACC3 Open + Split 3 719 Analog 1 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP3400
ACC3 Open + Split 2 719 Analog 2 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP2200
ACC3 Open + Split 2 719 Analog 2 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP2400
ACC3 Open + Split 1 719 Analog 3 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP1200
ACC3 Open + Split 1 719 Analog 3 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP1400
ACC3 Open + Split 4 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP0200
ACC3 Open + Split 4 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP0400
ACC3 Open + Split 4 analog FW 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP4FW200
ACC3 Open + Split 4 analog FW 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP4FW400
ACC3 Open + Split 3 analog FW 1 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP3FW200
ACC3 Open + Split 3 analog FW 1 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP3FW400
ACC3 Open + Split 2 analog FW 2 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP2FW200
ACC3 Open + Split 2 analog FW 2 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP2FW400
ACC3 Open + Split 1 analog FW 3 TC 50 cm + CAN cable Open 7M712-FW 200 cm X08ACC3OAP1FW200
ACC3 Open + Split 1 analog FW 3 TC 50 cm + CAN cable Open 7M712-FW 400 cm X08ACC3OAP1FW400
Split 4 719 Analog 3 cables 50 cm + 1 cable 100 cm V02551920
Split 4 719 Analog 50 cm V02551720
Split 3 719 Analog + 1 TC 50 cm V02551880
Split 2 719 Analog + 2 TC 50 cm V02551890
Split 1 719 Analog + 3 TC 50 cm V02551900
Split 4 TC 50 cm V02551910
Split 4 Analog FW cables 50 cm V02551930
Split 3 Analog FW + 1 TC cables 50 cm V02551980
Split 2 Analog FW + 2 TC cables 50 cm V02551990
Split 1 Analog FW + 3 TC cables 50 cm V02543010
CAN cable Open - 7M712-FW 50 cm V02551670
CAN cable Open - 7M712-FW 100 cm V02551760
CAN cable Open - 7M712-FW 200 cm V02551770
CAN cable Open - 7M712-FW 400 cm V02551780
CAN cable Open-AiM - 7M5M712 50 cm V02551830
CAN cable Open-AiM - 7M5M712 100 cm V02551840
CAN cable Open-AiM - 7M5M712 200 cm V02551850
CAN cable Open-AiM - 7M5M712 400 cm V02551860
Harness 7M712 USB 30 cm V02551690
Harness 7M712 USB 50 cm + 12V Power V02551960
