TECHNICAL SPECIFICATIONS
K8 KEYPAD
 Keys
8 programmable keys (momentary, toggle, multistatus)
 Backlight buttons
RGB with dimming option
 Connection
CAN AiM Binder 5 pins
 Material
Rubber silicon and PA6 GS30%
 Dimensions
127.4 x 71.4 x 24 mm
 Weight
150 g
 Waterproof
IP67
AVAILABLE VERSIONS
K8 KEYPAD
Keypad K8 + CAN cable AiM - 5MM712 50 cm X08KPK8AC050
Keypad K8 + CAN cable AiM - 5MM712 100 cm X08KPK8AC100
Keypad K8 + CAN cable AiM - 5MM712 200 cm X08KPK8AC200
Keypad K8 + CAN cable AiM - 5MM712 400 cm X08KPK8AC400
Icons kit (72 pieces) X08KPK8KICONS
Icons (chosen by the user) Part numbers here
K8 KEYPAD HARNESSES
CAN cable AiM - 5MM712 50 cm V02554790
CAN cable AiM - 5MM712 100 cm V02554810
CAN cable AiM - 5MM712 200 cm V02554820
CAN cable AiM - 5MM712 400 cm V02554830
K8 OPEN KEYPAD



 Keys
8 programmable keys (momentary, toggle, multistatus)
 Backlight buttons
RGB with dimming option
 Connection
USB CAN Binder 7 pins
 Voltage
9÷15 V
 Material
Rubber silicon and PA6 GS30%
 Dimensions
127.4 x 71.4 x 24 mm
 Weight
150 g
 Waterproof
IP67
AVAILABLE VERSIONS
K8 OPEN KEYPAD
Keypad K8 Open + CAN cable Open - 7M712-FW 200 cm X08KPK8OC200
Keypad K8 Open + CAN cable Open - 7M712-FW 400 cm X08KPK8OC400
Icons kit (72 pieces) X08KPK8KICONS
Icons (chosen by the user) Part numbers here

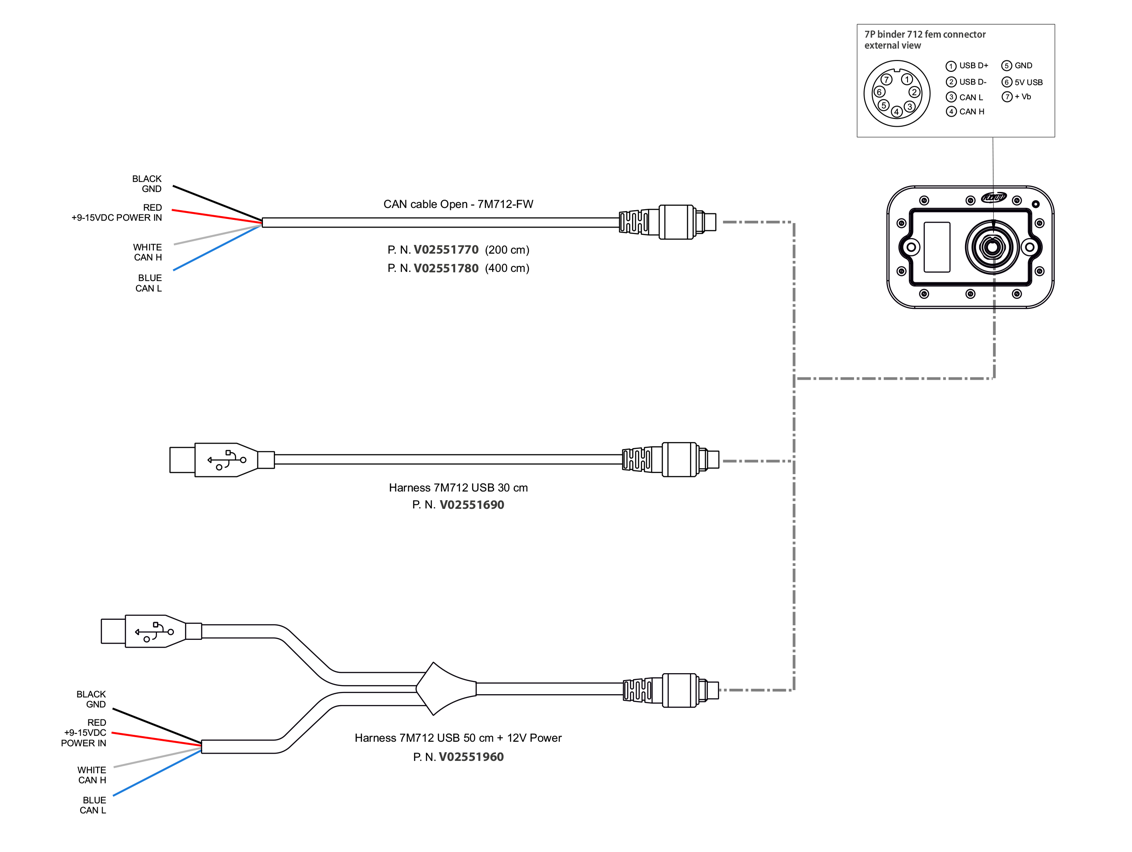

K8 OPEN KEYPAD HARNESSES
CAN cable Open - 7M712-FW 200 cm V02551770
CAN cable Open - 7M712-FW 400 cm V02551780
CAN cable Open-AiM - 7M5M712 200 cm V02551850
CAN cable Open-AiM - 7M5M712 400 cm V02551860
Harness 7M712 USB 30 cm V02551690
Harness 7M712 USB 50 cm + 12V Power V02551960
K15 KEYPAD
 Keys
15 programmable keys (momentary, toggle, multistatus)
 Backlight buttons
RGB with dimming option
 Connection
CAN AiM Binder 5 pins
 Material
Rubber silicon and PA6 GS30%
 Dimensions
157.4 x 104.4 x 24 mm
 Weight
250 g
 Waterproof
IP67
AVAILABLE VERSIONS
K15 KEYPAD
Keypad K15 + CAN cable AiM - 5MM712 50 cm X08KPK15AC050
Keypad K15 + CAN cable AiM - 5MM712 100 cm X08KPK15AC100
Keypad K15 + CAN cable AiM - 5MM712 200 cm X08KPK15AC200
Keypad K15 + CAN cable AiM - 5MM712 400 cm X08KPK15AC400
Icons kit (72 pieces) X08KPK8KICONS
Icons (chosen by the user) Part numbers here
K15 KEYPAD HARNESSES
CAN cable AiM - 5MM712 50 cm V02554790
CAN cable AiM - 5MM712 100 cm V02554810
CAN cable AiM - 5MM712 200 cm V02554820
CAN cable AiM - 5MM712 400 cm V02554830
K15 OPEN KEYPAD



 Keys
15 programmable keys (momentary, toggle, multistatus)
 Backlight buttons
RGB with dimming option
 Connection
USB CAN Binder 7 pins
 Voltage
9÷15 V
 Material
Rubber silicon and PA6 GS30%
 Dimensions
157.4 x 104.4 x 24 mm
 Weight
250 g
 Waterproof
IP67
AVAILABLE VERSIONS
K15 OPEN KEYPAD
Keypad K15 Open + CAN cable Open - 7M712-FW 200 cm X08KPK15OC200
Keypad K15 Open + CAN cable Open - 7M712-FW 400 cm X08KPK15OC400
Icons kit (72 pieces) X08KPK8KICONS
Icons (chosen by the user) Part numbers here
K15 OPEN KEYPAD HARNESSES
CAN cable Open - 7M712-FW 200 cm V02551770
CAN cable Open - 7M712-FW 400 cm V02551780
CAN cable Open-AiM - 7M5M712 200 cm V02551850
CAN cable Open-AiM - 7M5M712 400 cm V02551860
Harness 7M712 USB 30 cm V02551690
Harness 7M712 USB 50 cm + 12V Power V02551960
