| EPM08 TECHNICAL SPECIFICATIONS |
|
 |
|
 |
|
| LEDs |
8 RGB LEDs + 1 EPM ON + 1 EPM STS (Status) |
| Analog/digital inputs |
|
|
6 fully configurable analog inputs
(0-5V; 0-12V) recorded at max 500 Hz each
|
|
|
|
|
|
Digital inputs pullup/pulldown
|
|
|
| Power outputs |
|
|
1 with serie diode rated up to 20 A (high side)
|
|
|
|
|
|
1 rated up to 25 A (high side)
|
|
|
|
|
|
6 rated up to 15 A (high side)
|
|
|
|
|
|
Protected for: over voltage, under voltage, short circuit,
over current, over temperature
|
|
|
|
|
|
All outputs have internal freewheeling diode
|
|
|
|
|
|
Total max current: 100 A
|
|
|
| Connectors |
1 AMP connector + 1 Amphenol Surlok connector |
| Body |
Anodized Aluminum |

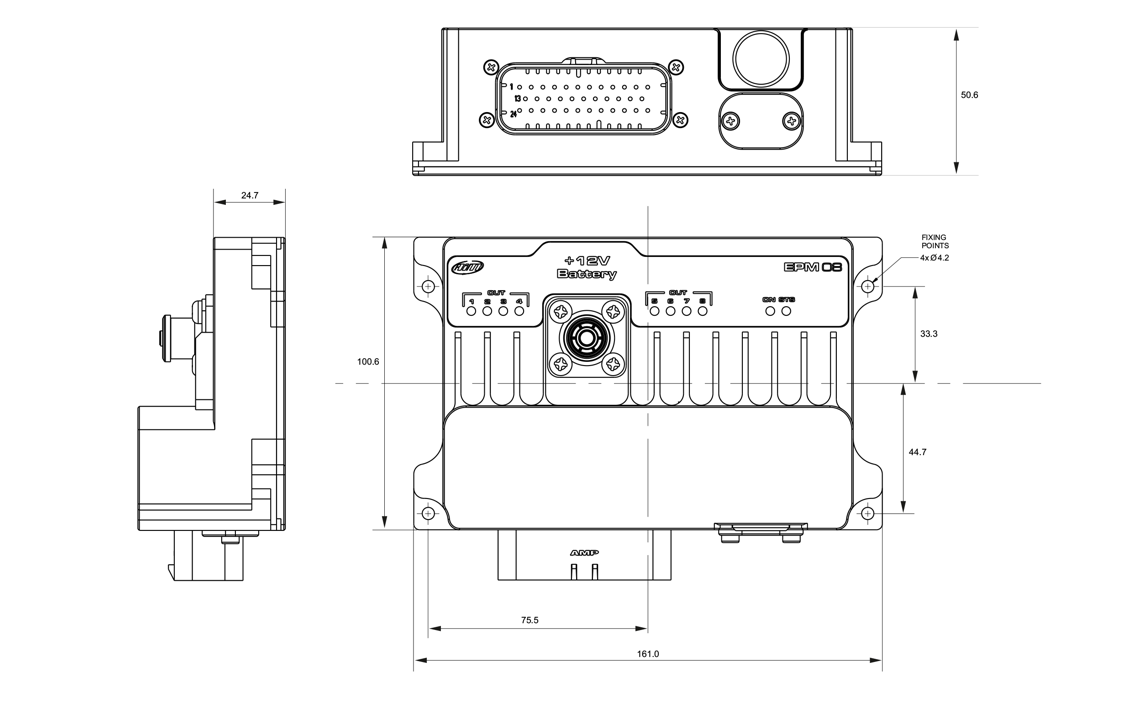

| Dimensions |
161x100.6x50.6 mm |
| Weight |
370 g |
|
|

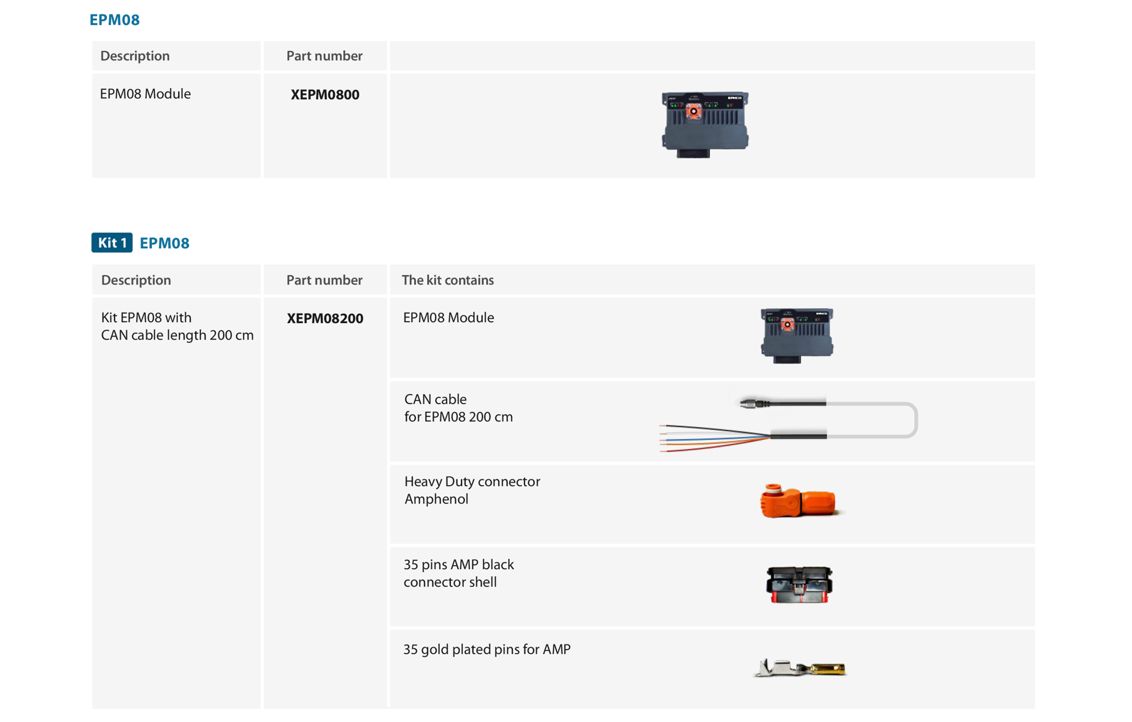

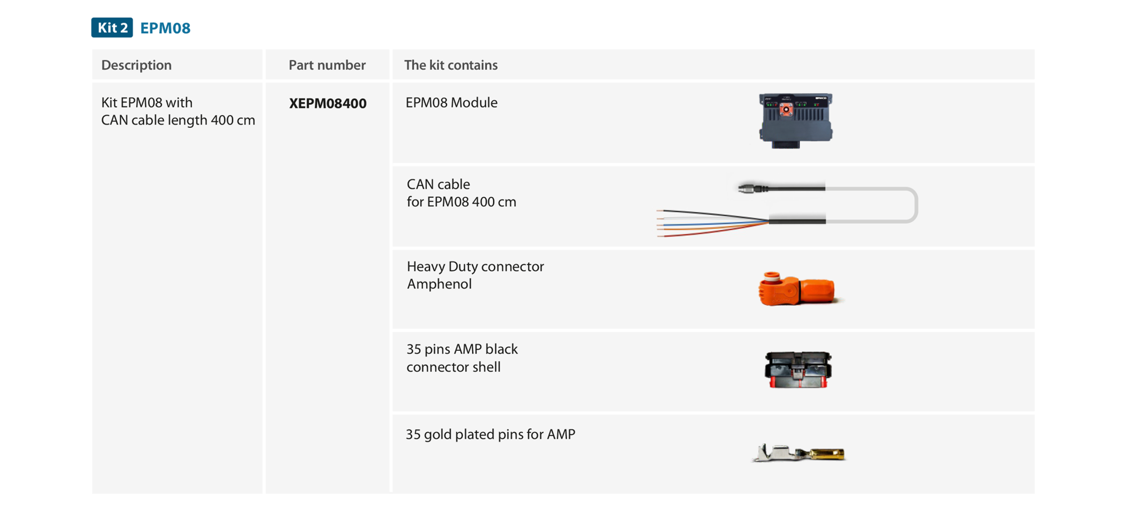

| EPM08 AVAILABLE VERSIONS |
|
 |
|
 |
|
 |
|
| EPM32 TECHNICAL SPECIFICATIONS |
|
 |
|
 |
|
| LEDs |
32 RGB LEDs + 1 EPM ON + 1 EPM STS (Status) |
| Analog/digital inputs |
|
|
12 inputs (8 configurable as analogic or digital, 4 digital only)
|
|
|
|
|
|
Up to 8 analogic inputs recorded at max 500 Hz each
|
|
|
|
|
|
Digital inputs pullup/pulldown
|
|
|
| Power outputs |
|
|
1 with serie diode + 3 rated up to 20 A (high side)
|
|
|
|
|
|
12 rated up to 15 A (high side)
|
|
|
|
|
|
12 rated up to 10 A (high side)
|
|
|
|
|
|
4 rated up to 35 A
(high side/half bridge/low side/configurable)
|
|
|
|
|
|
Protected for: over voltage, under voltage, short circuit,
over current, over temperature
|
|
|
|
|
|
Total max current: 120 A
|
|
|
| Connectors |
2 AMP connectors + 1 Amphenol Surlok connector |
| Body |
Anodized Aluminum |

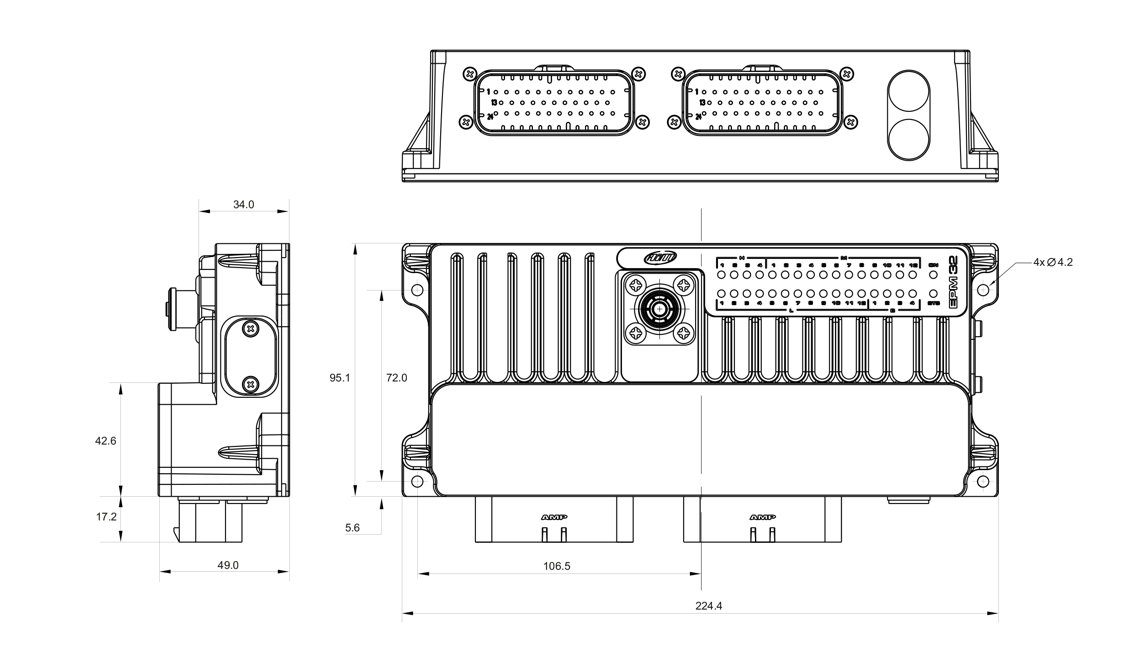

| Dimensions |
234.4 x 95.1 x 49.0 mm |
| Weight |
740 g |
|
|

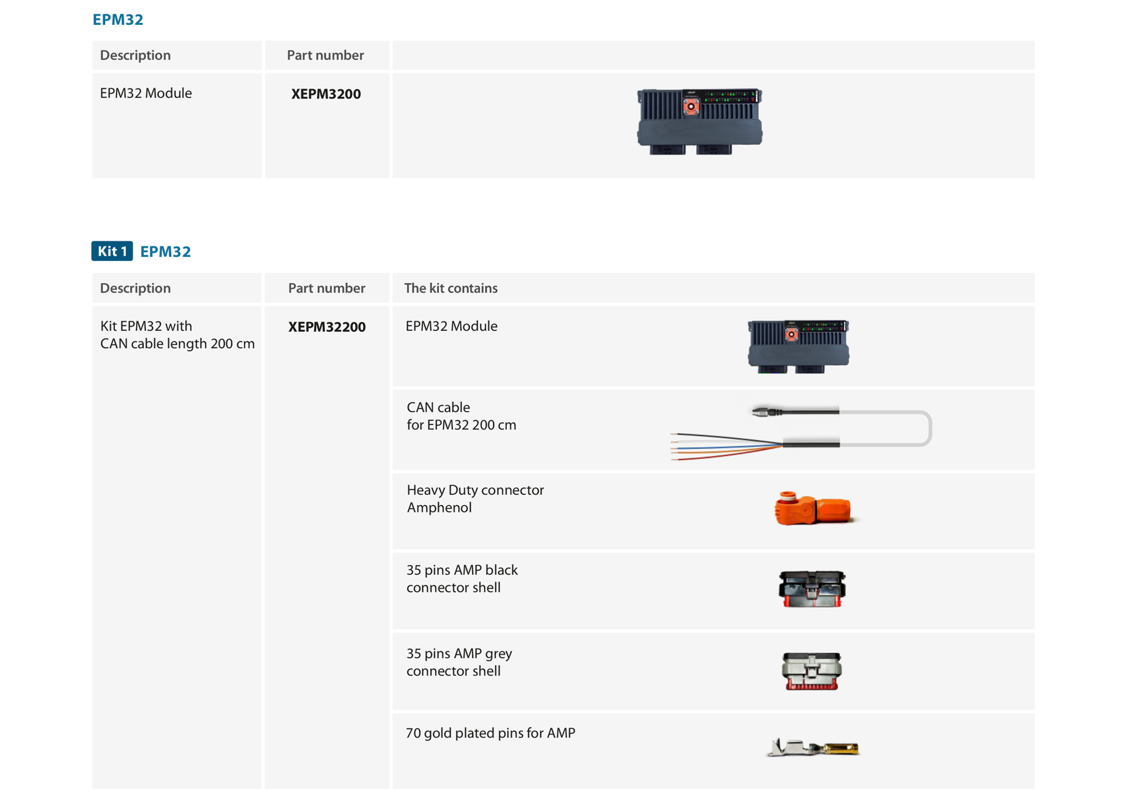

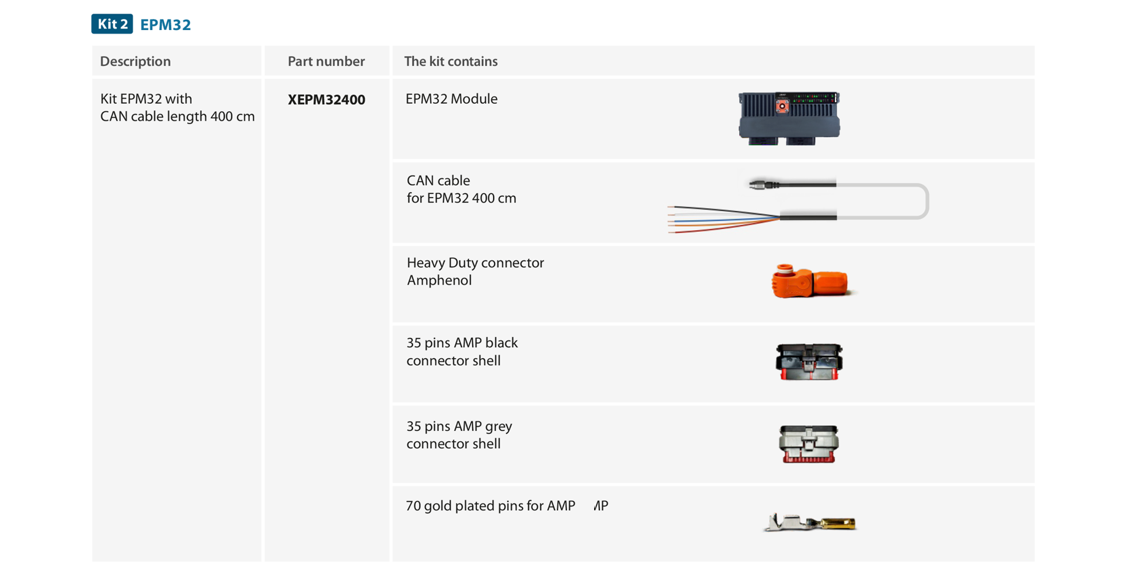

| EPM32 AVAILABLE VERSIONS |
|
 |
|
 |
|
|
|
|
|
