| Outputs |
 |
|
4 saturated injectors (12 Ω) |
|
|
4 coil power driver (21 A, 390 V, 300 mJ) |
|
|
MRD low side (main relay driver max 0.6 A) |
|
|
1 high side 5 A |
|
|
1 high side 0.6 A |
|
|
1 H-BRIDGE (DBW) 8.3 A |
|
|
2 Vref (5 V, 100 mA) |
|
|
8 low side (7 @ 4 A, 1 @ 2.2 A) |
|
| Inputs |
|
|
1 differential crank position sensor (VRS) |
|
|
2 digital frequency inputs (1 speed, 1 cam sync) VRS/HALL |
|
|
1 key input |
|
|
5 digital input, close to GND |
|
|
9 analog inputs (8 inputs 0-5 V, 1 input 0-12 V) |
|
|
temperature inputs 50 Ω-100 KΩ |
|
|
1 knock sensor |
|
| Hardware characteristics |
|
|
Interfaces: 3 CAN busses (1 for calibration, 1 for datalogger/dashboard, 1 for chassis) |
|
|

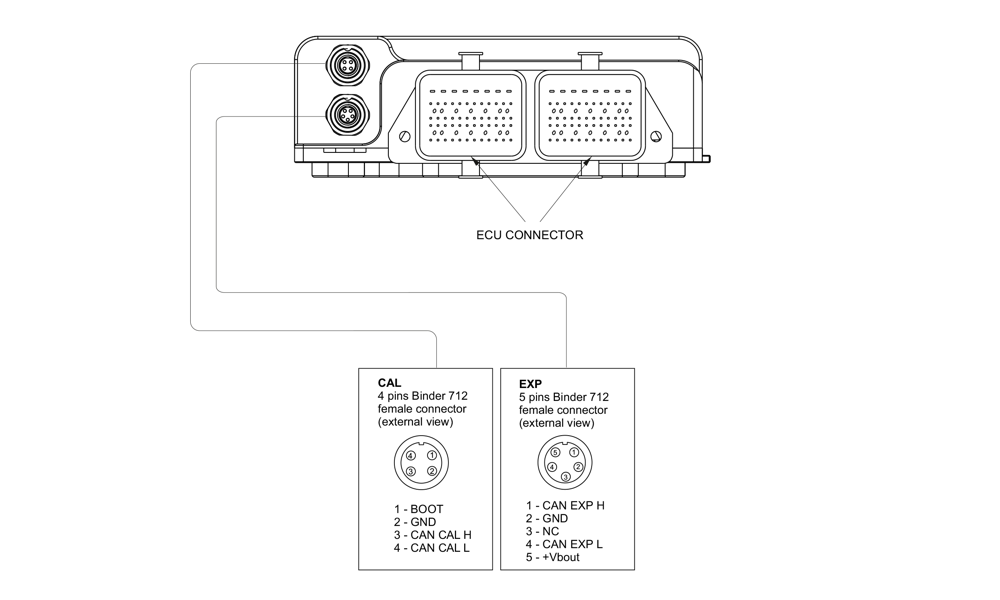

Connectors: 2 x 56 contacts connectors + 2 Binder 712 female connectors |
|
|
Lambda: internal wide band lambda controller |
|
|
Inertial platform: internal 6 DOF IMU (3 x accelerometers, 3x gyro) for pitch and roll |
|
|
Body: Aluminum |
|
|

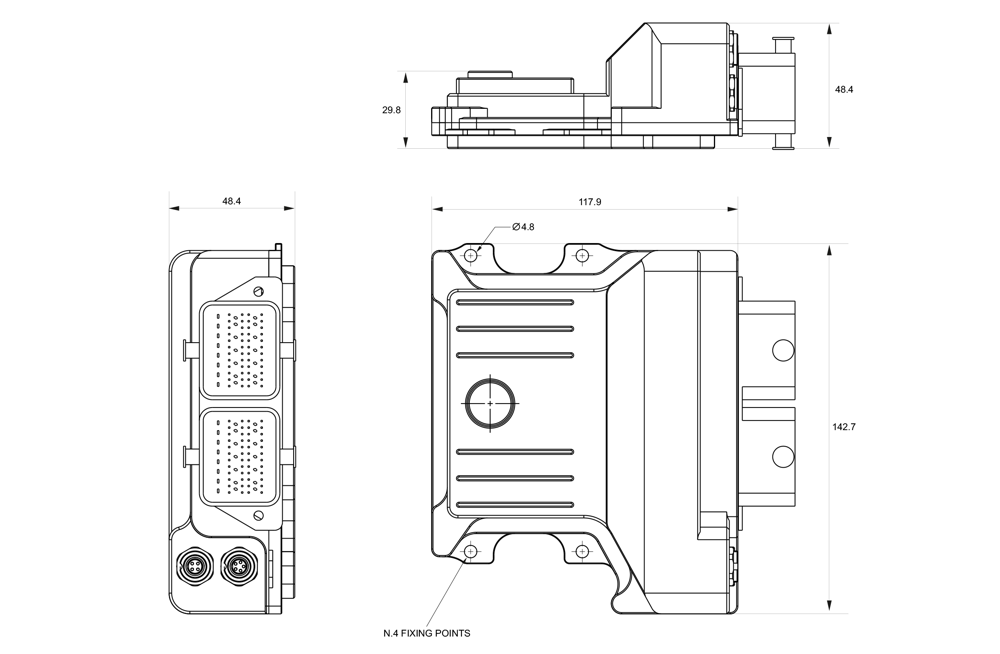

Dimensions: 142.7x117.9x48.4 mm |
|
|
Weight: 450 g |
|
|
Waterproof: IP67 |
|
| Other characteristics |
|
|
Internal barometric sensor |
|
|
Internal memory |
|
|
