GET EVEN CLOSER |
|
WITH MXK10-Gen5 |
|
The brand new Plug & Play Dash Logger
kit specifically designed for Kawasaki |
|
Ninja ZX-10R - 5th gen |
|
(ZX-10R, ZX-10RR and ZX-10R SE years 2016-2020) |
|
|
|
|
|
|
|
MXK10-Gen5 is an AiM Dash Logger designed to be easily installed on the Kawasaki Ninja ZX-10R, ZX-10RR and ZX-10R SE produced in the years 2016-2020 (5th gen).
The kit, named MXK10-Gen4, is also available for Ninja produced in the years 2011-2015 (4th gen). |
|
More Clear, More Racing |
|
Forget any light and shadow issue: thanks to its high contrast 5’’ TFT display, in any situation reading data will never be this easy. Moreover, its aluminum body makes MXK10-Gen5 a lightweight device and the racing inspired design will give your
Ninja an even better and more aggressive look.
|
|
Full Plug & Play |
|
MXK10-Gen5 is a full Plug & Play dash logger, completely compatible with the original connector and with the original bracket fixing points of your bike. |
|
|
|
|
|
|
|
|
|
| Everything Right Under Control |
|

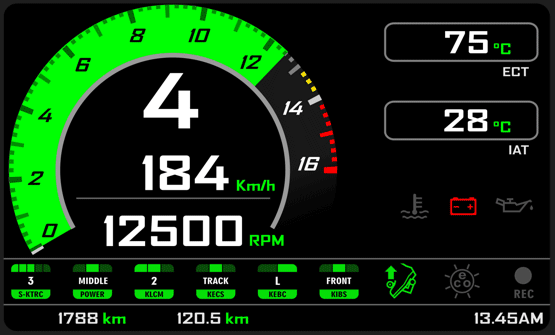

| 5' Colour TFT Display |
|
| 6 Status information LEDs |
|
| 10 Shift lights |
|
|
|
|
|
| Get the Best out of MXK10-Gen5 |
|
| Main connection |
| Power and interaction with the bike |
|
|
| USB connection |
| For data download |
|
|
| EXP connection |
| To expand your MXK10 |
|
|
| Internal memory |
| 4 GB For recording your data |
|
|
|
|
|
|
|
A Wide, Complete and User-friendly Menu |
|
 |
|
Find the perfect set-up that fits either your riding-style or the road/track conditions.
The complete menu allows you to easily modify every parameter of your bike: suspension setting, ECU maps, traction control, anti-wheeling, ABS, and so on. |
|
|
|
|
|
|
Lap Timing and Data Logging for the Track |
|
| |
| In case you ride your bike on a track, you may automatically get your lap times, thanks to the GPS Module and to a huge tracks database, installed in the MXK10-Gen5. |
|
| Not only. MXK10-Gen5 records all the data coming from your ECU, as well as from the GPS Module: you can download them after each session, in order to analyze them and improve your performance, with the same, powerful AiM Software that so many professional racing teams use in all the tracks of the world. |
|
|
|
|
|
|
|
|
Go even Full Racing |
|
MXK10-Gen5 is FULLY COMPATIBLE with Kawasaki Racing Kit.
It won’t need any additional wiring but the ones already included in the Racing Kit itself.
Plug it and play it. |
|
|
|
|
|
|
| Expansions |
|
| MXK10-Gen5 may even manage a wide range of CAN expansion modules in order to let you acquire data also from suspensions potentiometers, brake pressure sensors, lambda values or tire temperature pyrometers, in order to gather even more specific data. |
|
LCU1S Lambda controller
Wide band Lambda controller with Bosch LSU
4.9 probe, providing all Air/Fuel data and lambda values,
allows to verify the behavior of your ECU. |
|
 |
|
|
Channel Expansion
It permits to add four 0-5 Volt analog channels for pressure,
temperature sensors and potentiometers. Two of these
channels can be configured to receive digital inputs like
wheel speed.
|
|
 |
|
|
SmartyCam 3 cameras
The on-board cameras that overlays on videos
the data sampled by your logger. |
|
 |
|
|
|
|
|
|
|
|
Wi-Fi connectivity and Analysis |
|
| Download all your data just wirelessly, for an even more practical usage in your track-day sessions
or during your race week-ends. You won’t worry anymore about cables that you may have forgotten
at home: using a secure 802.11 Wi-Fi connection, all your data will be stored straight on your
PC, ready to be deeply analyzed via our free software RaceStudio 3. |
|
| Via RaceStudio 3, indeed, graphs, histograms, and tables will help you study your performance, providing an
objective support to avoid mistakes and improve performances. |
|
|
|
|
|
