GPS & TRACK MANAGEMENT
MX Series can be used on track thanks to AiM GPS09 Module (optional for Strada and Strada Light) .
This is used for:
Lap time calculation
Speed calculation
Predictive lap time calculation
To calculate these data the system needs to know the start/finish line coordinates of the racetrack you are racing on.

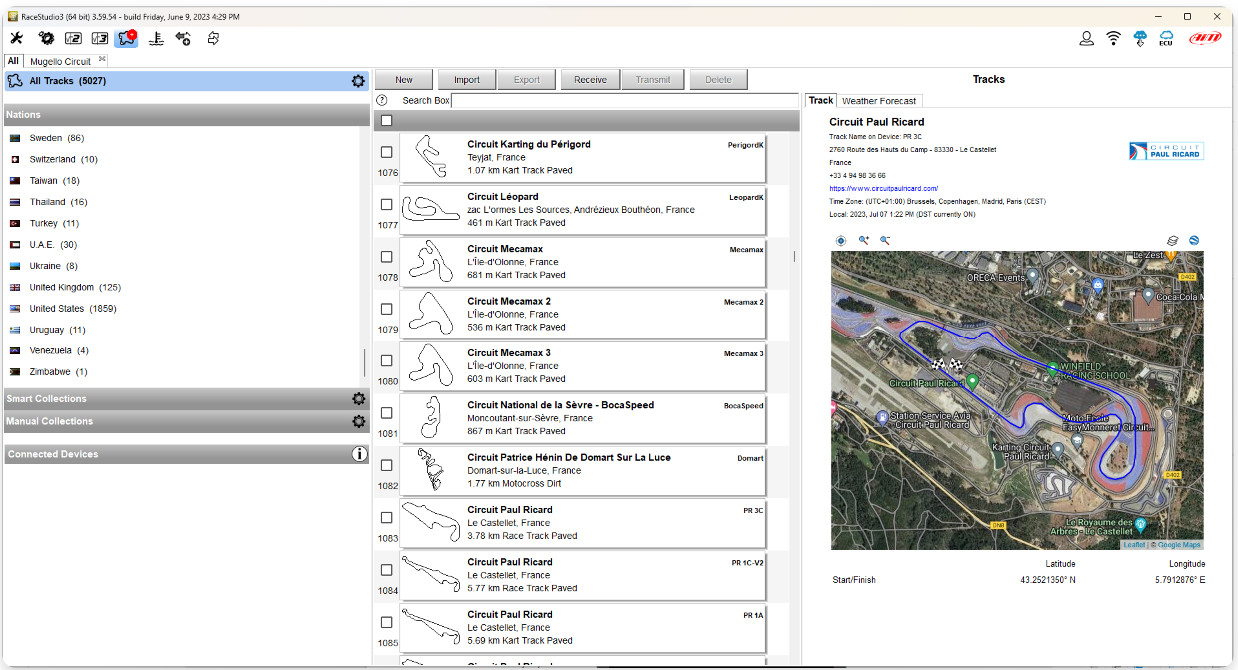

MX Series comes with a long list of the world main tracks, constantly updated by our technicians and automatically loaded to your PC when you run RaceStudio 3 software and a connection to the Internet is available.
TRACK SELECTION MODE
Automatic
MX Series automatically recognizes the track you are running on, loads the start/finish line and the possible splits coordinates and calculates lap and split times without optical/magnetic receiver. This is the best mode in most cases.
Manual
Allows to manually select the track from the internal database. This mode is to be preferred when multiple track configurations are available nearby. In this case MX Series would anyway recognize the track but would need at least one complete track lap.
You can scroll the list of available tracks choosing among these options:
nearest: shows only tracks in a 10 km distance
all: shows all tracks stored in the system in alphabetical order
custom: shows only the tracks you have previously created with Rase Studio 3 software
