LCU1S TECHNICAL SPECIFICATIONS
 Sensor compatibility
Bosch LSU 4.9
 Power supply voltage
9÷15 V
 Power supply current
50 mA + sensor heater typical current 750 mA
up to 2 A on cold sensor
 Lambda value
from 0.75
 Reaction time
Less than 10 msec
 Connections

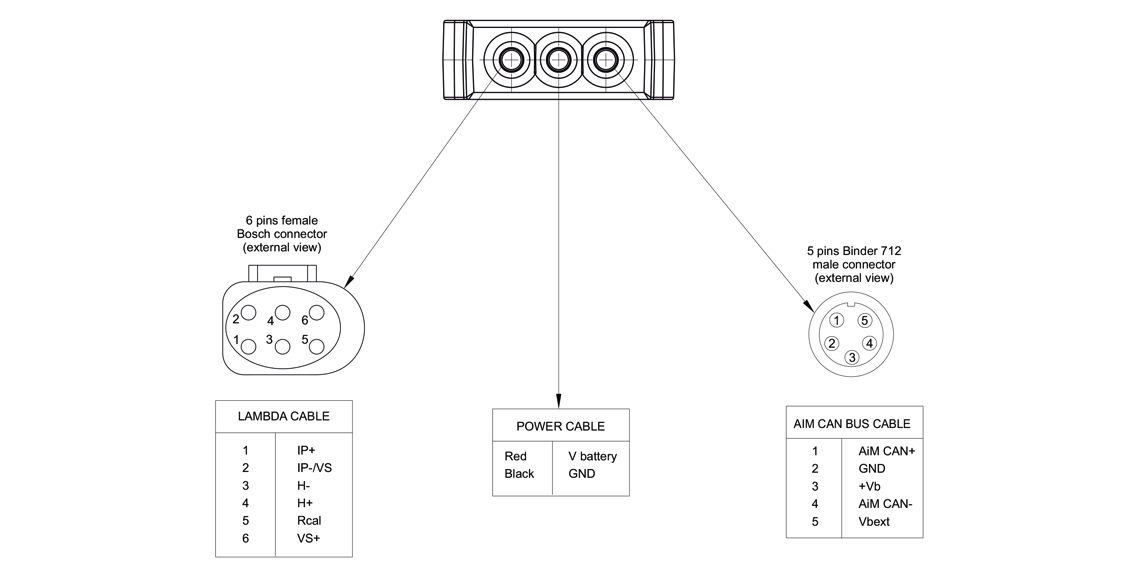

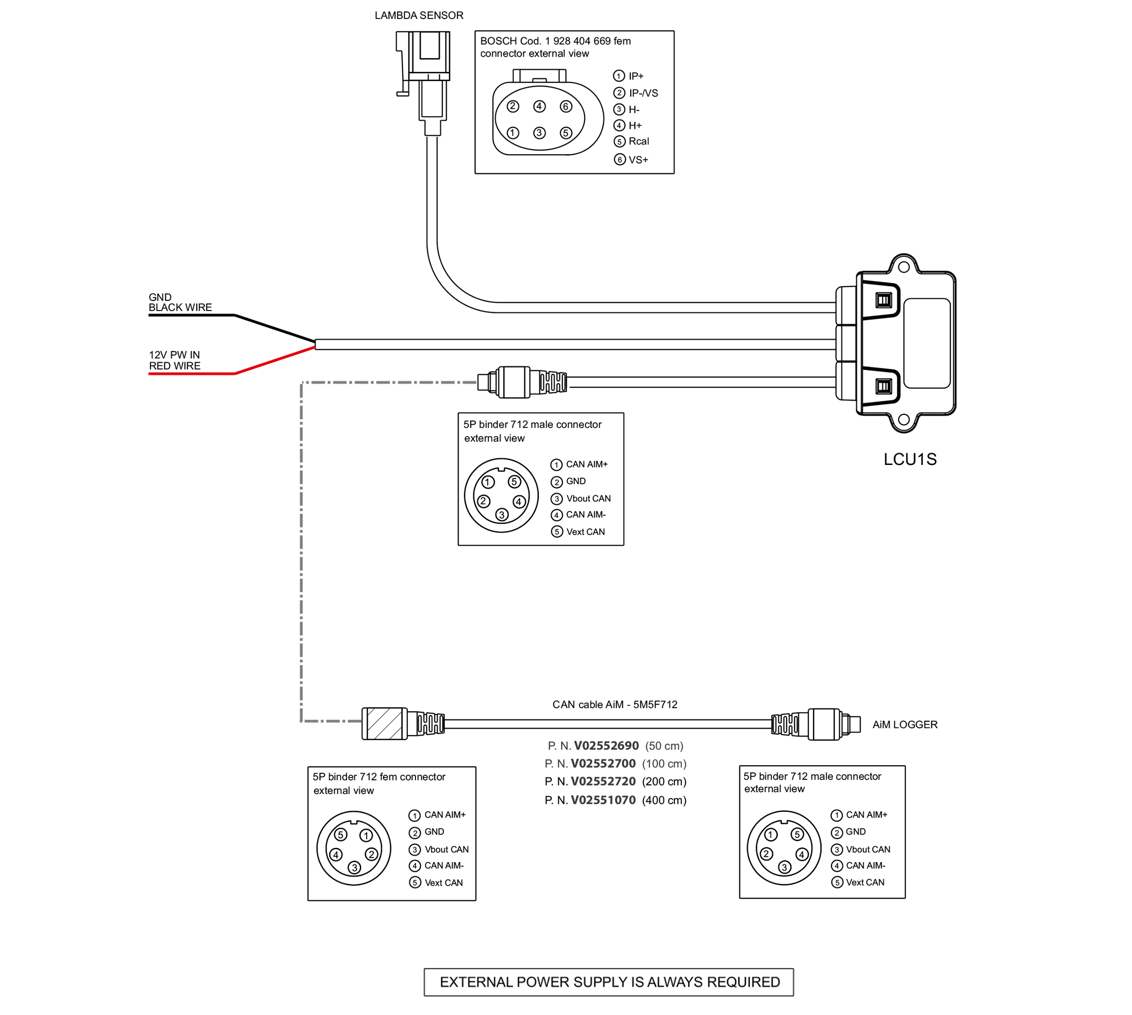

BOSCH Cod. 1 928 404 669 female + AiM CAN 5 pins Binder 712 male
 Material
Latigloss 57 (PPA Glass Fiber Reinforced)
 Dimensions

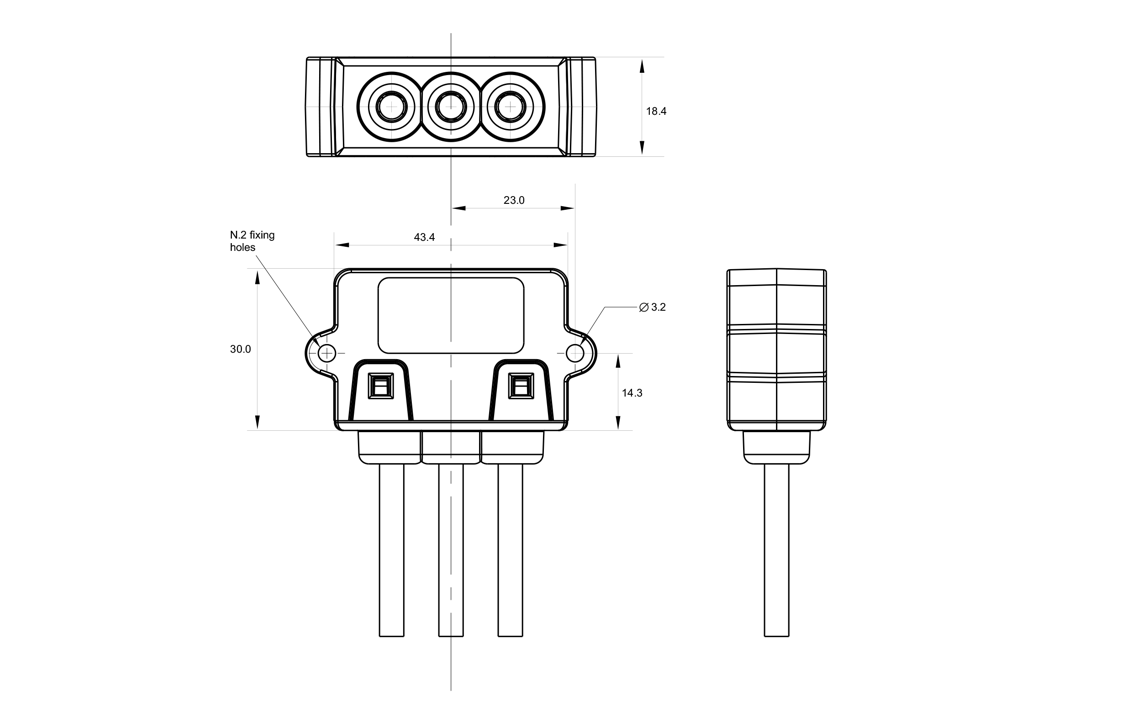

43.4 x 30 x 18.4 mm
 Weight
70 g
 Waterproof
IP67

Part numbers:
X08LCUS1AC0 LCU1S AiM no Lambda probe
X08LCU1SAC090
LCU1S AiM Exp (includes: LCU1S + BOSCH LSU 4.9 Lambda probe
+ Thread iron ring for installation)
Accessories/spare parts:
X05LSU490 BOSCH LSU 4.9 Lambda probe
LBS552680 Thread iron ring for installation
V02552690 CAN cable AiM - 5M5F712 50 cm
V02552700 CAN cable AiM - 5M5F712 100 cm
V02552720 CAN cable AiM - 5M5F712 200 cm
V02551070 CAN cable AiM - 5M5F712 400 cm

LCU1S OPEN TECHNICAL SPECIFICATIONS
 Sensor compatibility
Bosch LSU 4.9
 Power supply voltage
9÷15 V
 Power supply current
50 mA + sensor heater typical current 750 mA
up to 2 A on cold sensor
 Lambda value
from 0.75
 Connections

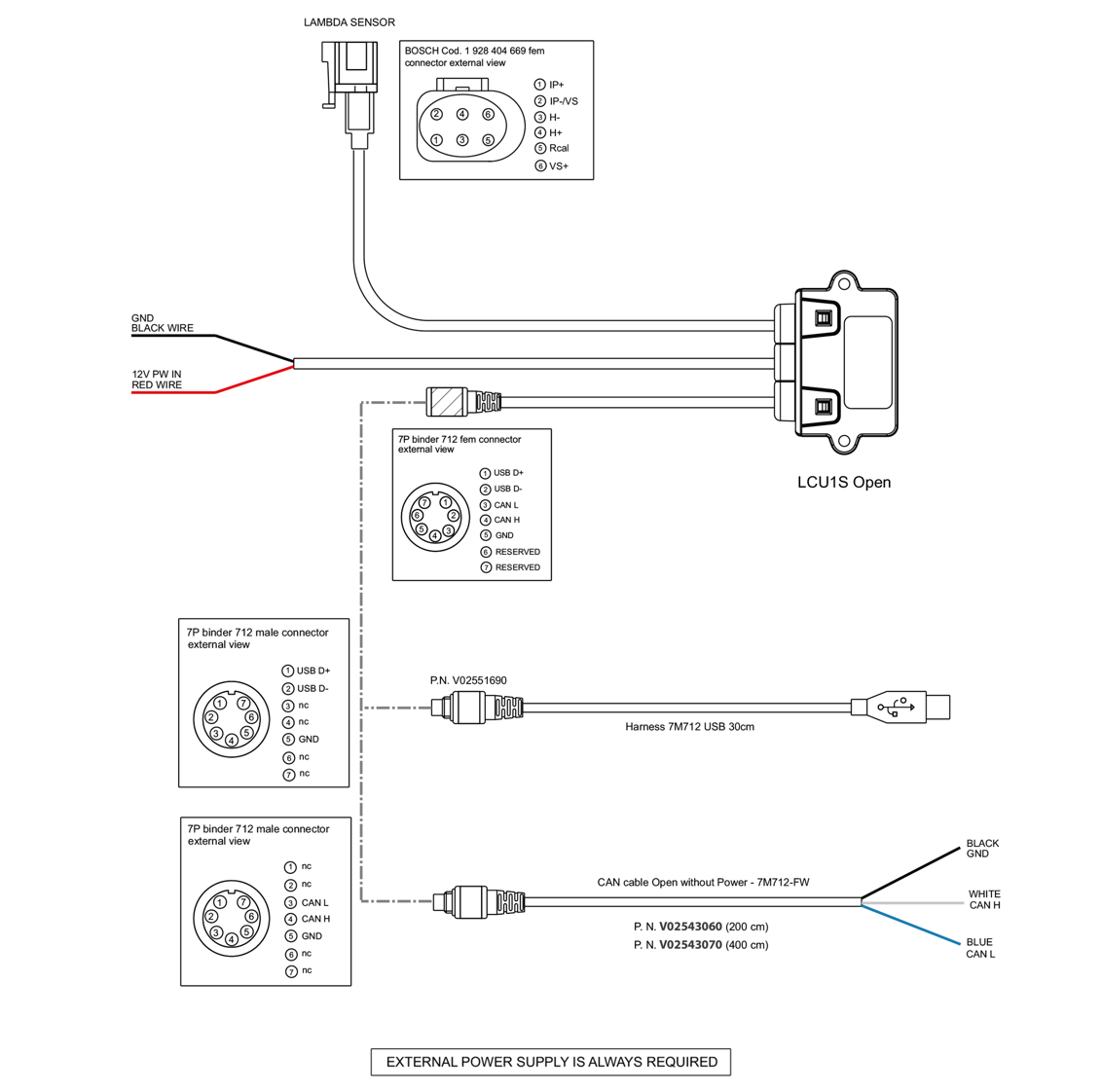

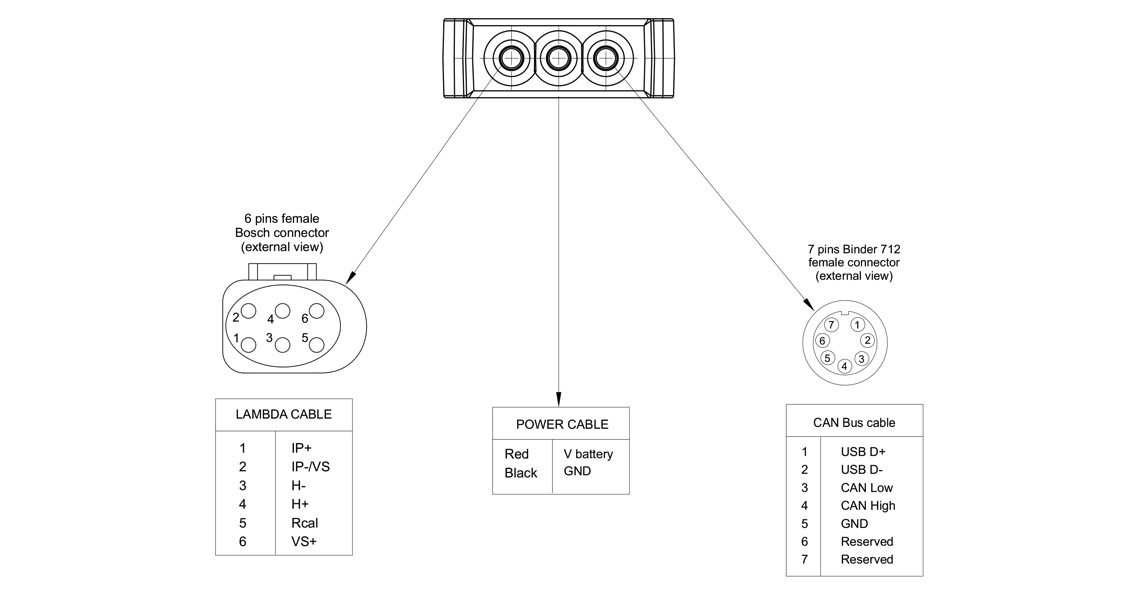

BOSCH Cod. 1 928 404 669 female + CAN 7 pins Binder 712 female
 Material
Latigloss 57 (PPA Glass Fiber Reinforced)
 Dimensions
43.4 x 30 x 18.4 mm
 Weight
70 g
 Waterproof
IP67

Part numbers:
X08LCU1SOC0 LCU1S Open no cable no Lambda probe
X08LCU1SOC200
LCU1S Open kit 1 (includes: LCU1S Open + CAN cable Open without Power - 7M712-FW 200 cm
+ BOSCH LSU 4.9 Lambda probe + Thread iron ring for installation)
X08LCU1SOC400
LCU1S Open kit 2 (includes: LCU1S Open + CAN cable Open without Power - 7M712-FW 400 cm
+ BOSCH LSU 4.9 Lambda probe + Thread iron ring for installation)
Accessories/spare parts:
X05LSU490 BOSCH LSU 4.9 Lambda probe
LBS552680 Thread iron ring for installation
V02543060 CAN cable Open without Power - 7M712-FW 200 cm
V02543070 CAN cable Open without Power - 7M712-FW 400 cm
V02551690 Harness 7M712 USB 30 cm
